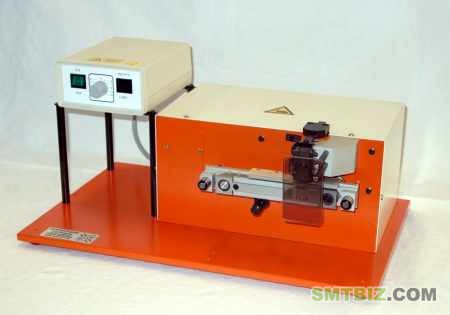

Cutting Device Type C 066 MAfor radial belted Components and touch-facilityto eliminate any kind of belt tolerances
|
|---|
 |
| Specification |
Components
|
|
| - dimension | 530 x 310 x 310 mm | |
| - weight | approx. 20 kg | |
| - electrical | 230 V / 50 Hz / 100 W | |
| - pitch | arbitrary | |
| - lead Ø | max. 1,3 mm | |
| - cut length | 2,5 mm and more | |
| - operation | by engine (continuously variable) | |
| - production rate | 5.000 pcs/hr | |
|
Description: With the Burst & Zick device Type C 066 MA, all taped radial components, which meet the IEC-specification, can be cutted to the desired length. The integrated touch-facility for components eliminates any kind of belt tolerances. |
||
