Universal Cutting and Forming Devices
for loose radial-leaded components
|
|
|---|---|
 |
|
|
Components        |
|
| only C 063
|
| Specificationen | Typ C 0 62 | Typ C 0 63 |
| - dimension | 160 x 150 x 110 mm | 230 x 107 x 110 mm |
| - weight | approx. 3 kg | approx. 4 kg |
| - compressed air | 4 to 6 bar | 5 to 6 bar |
| - pitch | arbitrary | arbitrary |
| - lead Ø | max. 1,3 mm | max. 1,3 mm |
| - operation | pneumatic Foot Pedal | pneumatic Foot Pedal |
| - delivered with | one processing unit | two processing units |
| - production rate | 1.000 to 1.500 pcs/hr | 1.000 to 1.500 pcs/hr |
|

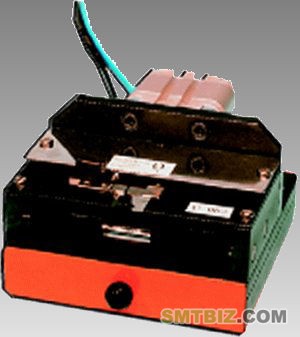

Description The Burst & Zick devices Type C 062 and C 063 are designed to process loose components with radial leads. Cutting and bending of the leads is done in one step including integrated strength member to eliminate axial strength uppon the component case. If the process of a component includes cutting, bending and stamping, you need to have two processing units (Type C 063). |
||
