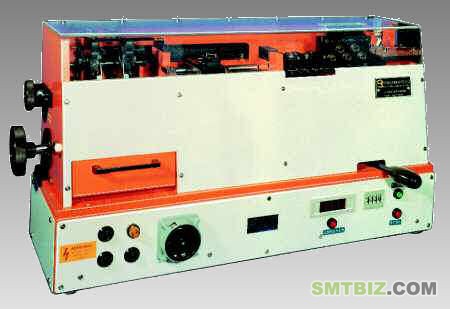

Cutting and forming Device Type C 060
|
|---|
 |
| Specification |
Components  |
|
| - dimensions | 900 mm x 250 mm x 300 mm | |
| - weight | approx. 25 kg | |
| - wire Ø | 0,5 mm; 0,6 mm; 0,7mm oder 0,8mm | |
| - power supply | 230 V, 50 Hz / 100 W | |
| - capacity | 6.000 jumper wires/hrs. | |
| - pitch | 5 mm to 75 mm | |
| - side leg | min. 3 mm | |
|
Description: The Burst & Zick GmbH model C060 is designed to cut and form 20 to 22 gauge jumper wires. The machine has an adjustable center to center distance and uses interchangeable die sets to vary the cut length. The wire straightener, feed clamp and backlash assembly combined with an adjustable feed stroke produce a precise jumper wire every time. |
||
