Universal Cutting Type C 058
点击图片查看原图
产品： 浏览次数：175Universal Cutting Type C 058
品牌： BURST & ZICK
单价： 面议
最小起订量：
供货总量：
发货期限： 自买家付款之日起 3 天内发货
有效期至： 长期有效
最后更新： 2014-11-24 09:45
  询价
详细信息

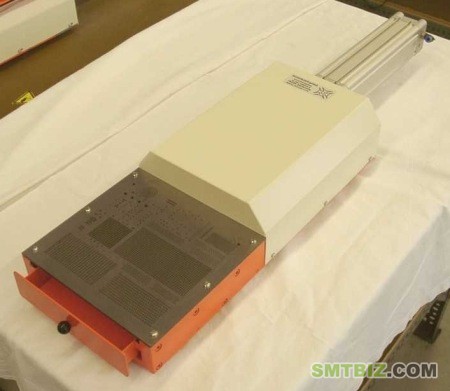

Universal Cutting Device Type C 058
Device


Components



Specification
- dimension 780 x 230 x 110 mm
- weight approx. 28 kg
- compressed air 6 bar
- lead Ø Ø on inquiry
- cut length standard 3 mm (other dimensions on inquiry)
- operation pneumatic Foot Pedal
- production rate 2.000 pcs/hr
- option special drill hole pictures on inquiry



Description:

The Burst & Zick device Type C 058 is designed to cut the leads of axial and radial components incl. ICs to the required length.
Even female connectors can be processed with this device. A diagonal arranged cutting knife is be driven over the whole working surface, so each component terminal is cutted by itself.

The plates are made of high quality tooling-steel, hardened to 60 HRC and polished.
