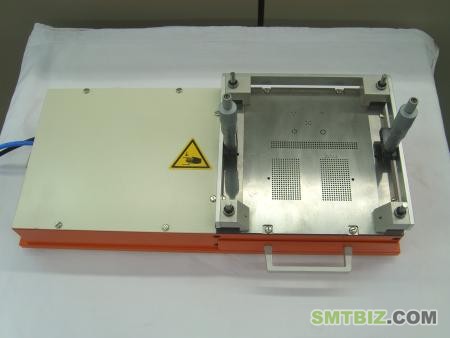

Universal Cutting Device Type C 057image shown with optional adjusting device for cutting length |
|---|
 |
|
Components   |
| Specification | |
| - dimension | 420 x 200 x 70 mm |
| - weight | approx. 3,5 kg |
| - compressed air | 4 to 6 bar |
| - pitch | 2,5 mm and 2,54 mm |
| - hole pattern | 13 x 21 drill holes for edge connectors; Round-pitches for operational amplifiers and transistors; and laterally slit for cutting components with long leads. |
| - lead Ø | 0,8 mm to 1,3 mm (other Ø on inquiry) |
| - cut length | standard 3 mm (other dimensions on inquiry) |
| - operation | pneumatic Foot Pedal |
| - production rate | 2.000 pcs/hr |
| - option | now available, adjusting device for cutting length from 3-25 mm |
| remark | special drill hole pictures on inquiry |
|
Description: The Burst & Zick device Type C 057 is designed to cut the leads of axial and radial components incl. ICs to the required length. The plates are made of high quality tooling-steel, hardened to 60 HRC and polished. |
|
