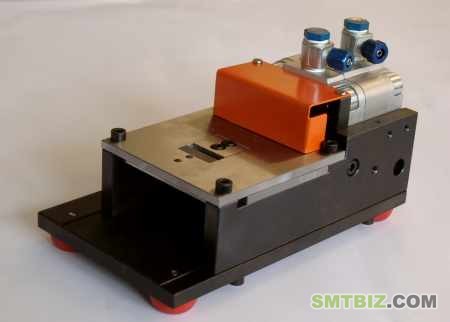

Busrt Zick Universal Cutting and Forming Device
|
|
|---|---|
 |
|
|
Components     |
|
| Specification | |
| - dimensions | 280 x 140 x 120 mm |
| - weight | approx. 1,5 kg |
| - compressed air | 4 to 6 bar |
| - pitch | 2,5 mm to 30 mm |
| - wire Ø | 0,4 mm to 1,0 mm |
| - cutting length | tool specific |
| - bending form/length | tool specific |
| - operation | pneumatic foot pedal |
|
Description: The Device Type C 055 S was developed espacially for the moderate cutting and forming of components with axial or radial leads (incl. ICs). Cutting and forming the leads will be done in one working cycle. Changing the die sets takes no longer than 5 minutes. |
|
