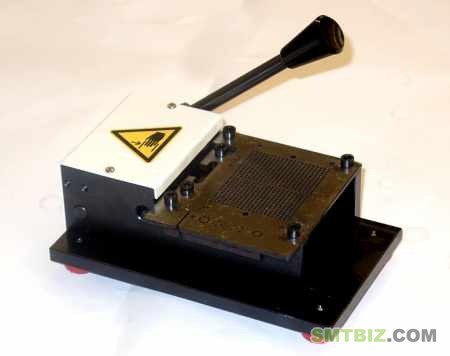

Cutting Device Type C 055 H
|
|---|
 |
| Specification |
Components  |
|
| - dimension | 280 x 140 x 120 mm | |
| - weight | approx. 1,5 kg | |
| - pitch | 13 x 21 drill holes | |
| - hole pattern | TO 18/TO 92/TO 5: 2,54 x 1,27 mm; 5,08 x 2,54 mm; 7,62 mm x 5,08 mm; Round-pitch for operational amplifiers with 8 and 10 leads; and laterally slit for cutting of components with long leads. |
|
| - cut length | standard 3 mm (other dimensions on inquiry) | |
| - drill Ø | 1,1 mm (others on inquiry) | |
| - production rate | approx. 1.500 pcs/hr | |
| - operation | manually | |
| remark | special drill holes on inquiry | |
|
Description: The Burst & Zick Devices Type C 055 H is designed to cut the leads of axial or radial leaded components incl. IC's to the required length. Cover plate and cutting tip are drilled with each other, so all leads will be cutted simultaneously. The plates are made of high-quality tool steel hardened to 60 HRC and polished. |
||
