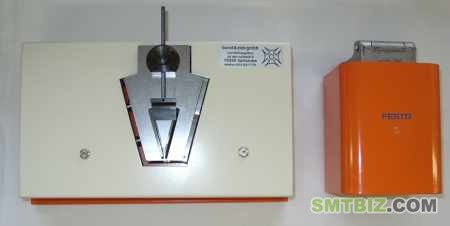

剪脚成型Device Type C 052 B
点击图片查看原图
产品: 浏览次数:503剪脚成型Device Type C 052 B
品牌: BURST & ZICK
单价: 面议
最小起订量:
供货总量:
发货期限: 自买家付款之日起 3 天内发货
有效期至: 长期有效
最后更新: 2014-11-23 21:58
  询价
详细信息
 BURST & ZICK

Cutting- and Forming Device Type C 052 B



Device C 052 B

Example of use



component forms

Dimensions max. min.
a 20,5 mm 3,5 mm
b   3,5 mm
c 0,8 mm 0,4 mm
Specification
- Dimensions 350 x 100 x 200 mm
- Weight ca. 15 kg
- Compressed air 4 bis 6 bar
- Pitch min. 3,5 mm (2,5 mm on inquiry)
max. 25 mm
- Wire Ø max. 0,8 mm
- Operation pneumatic



Description:

The Burst & Zick GmbH model C052/B is designed to cut and form radial components with 2 leads. A variety of form shapes are possible through the use of interchangeable die sets.

Two Bending forms can be choosed:

  1. distance wave
  2. zz-Wave bended to inside or outside

The die sets can be manufactured to customer specification.

The triangular shaped center die allows components with lead spans from 3.5 mm to 20 mm to be processed on a single die. Adjustments are provided for the placement and exaggeration of the form.

Easy to operate, the C052/B offers an economical solution to quality forming of loose, radial components.
