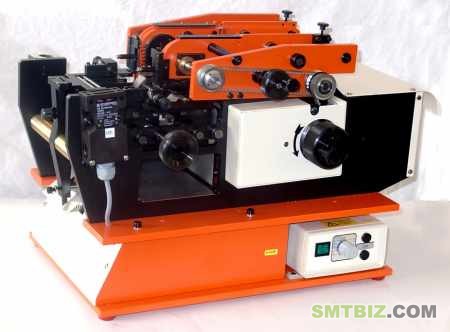

BURST & ZICK Cutting and Forming Machine
|
|---|
 |
|
Components        |
| Specification | |
| - dimension | 600 mm x 480 mm x 450 mm |
| - weight | approx. 45 kg |
| - electrical | 230 V / 50 Hz / 200 W |
| - compressed air | 6 bar |
| - bending tool | horizontal bendings |
| - min. pitch | 7,5 mm |
| - max. pitch | 50 mm |
| - lead Ø | 0,4 mm to 1,3 mm |
| - components | taped |
| - production rate | 3.600 pcs/hr (continuously variable) |
| - Option | - manual supplyment for lose components |
| - digital display for pitch and cutlength | |
| - pre-set and item counter | |
| - survey for component-roll or ammo-pack | |
|
Description: To make the insertion of components with short leads into p. c. boards possible, the leads have to be cut to suitable length, bend to the required pitch and -if necessary- stamped. The stamping result for the leads depends on the used tool. Leadforming ist tool specific and can be manufactured to meet customer requirements. The difference to the types C 043 and C 043 E is the integrated Pneumatic which makes the rearrangement of the Bending- and Formingtools possible. This means, that the tools can be approached to the components. Espacially bendings with Flush-Mount-bead can be done. The taped components can be processed automatically. The processing-speed is continuously variable. The tool change for different bending dimensions takes about 5 minutes. |
|
