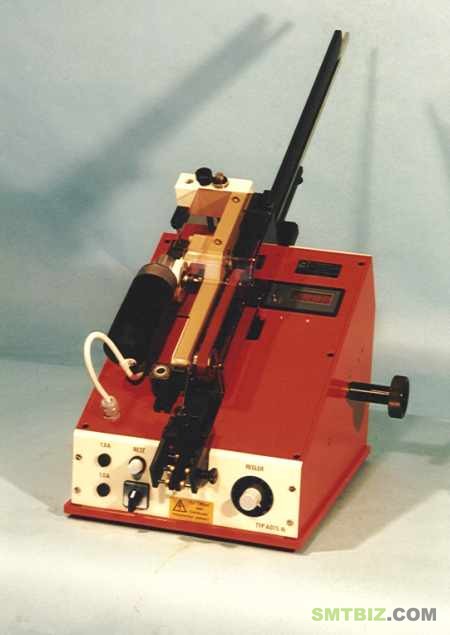

BURST & ZICK Forming Machine Type A 075 Rifor DIP Components
|
|---|
 |
| Specification |
components  |
|
| - dimension | 360 x 430 x 400 mm | |
| - weight | approx. 20 kg | |
| - electrical | 230 V / 50 Hz / 60 W | |
| - compressed air | min. 6 bar, max 8 bar | |
| - pitch | min. 7,62 mm, max. 19,9 mm | |
| - components | in tubes | |
| - production rate | 10.000 components/h (continuously variable) | |
|
Description: The Burst & Zick forming machine type A 075 Ri is designed to form the leads of dual in-line package components utilizing a tube-to-tube feeding configuration. The machine is able to process DIP's in a wide range of component sizes (from 7,62 mm up to 19,9 mm). The adjustment of lead span can be preset and is displayed on a digital panel. The supply of components can only be done by the use of component tubes. The processing speed is continuously variable. Up to 5.000 components can be processed within an hour. |
||
