| Specifications | |
| - Dimensions | 440 mm x 700 mm x 380 mm |
| - Weight | ca. 20 kg |
| - Electrical | 230V / 50 Hz / 110W |
| - Clamp Height | min. 20 mm max. 90 mm |
| - Working Area | 340 mm x 230 mm |
| - Operation | triggered by end stop |
|

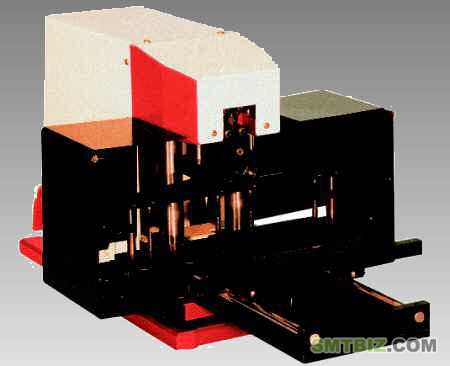

Description: The Motorpress Type D 020 has been developed to press edge connectors, revitings and so on into p. c. boards. The press can also be used to join several p. c. boards or p. c. board components. Using different toolkits changed inside the master tool varying assembly sequences can be done much easier than doing the same before using a toggle lever press. Because of the dimensions, the Motorpress can be mounted on a working bench, or it can be made available on an assembly vehicle. The working method is easy: The p. c. board and the component are shifted into the working area. After meeting the end stop the switch starts the assembling process. Because of the nearly closed protection device there is no danger for the Operator. |
|
